Fan Hinging Solutions

Quick Fit Super Hinge

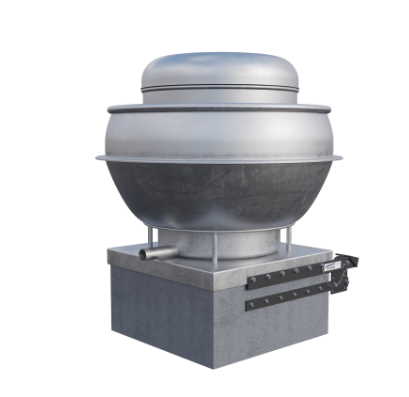

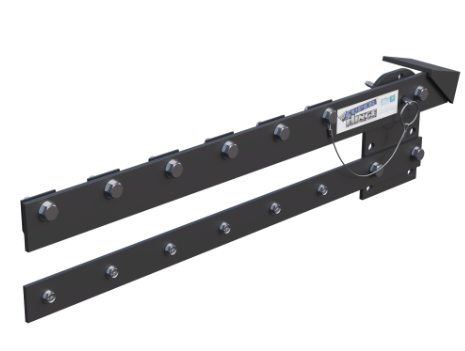

The patented Quick Fit Super Hinge™ offers easy access to rooftop up-blast exhaust fans and is available in standard or custom sizes, fitting fan bases from 10 to 45 square inches. This unique mounting system, specific to the QF Super Hinge™ models, features a tab-based upper arm that allows for installation while the fan is running and supports single-user installations (depending on fan weight or foundation condition).

Hinged up-blast exhaust fans are necessary for commercial exhaust systems to comply with NFPA 96 requirements, which include:

Hinged commercial up-blast exhaust fans
Service hold-open retainers

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

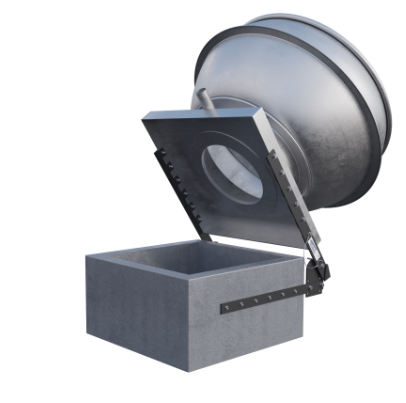

The Quick Fit Super Hinge™ incorporates the patented Super Hinge™ Service Hold Open Retention System. Manufactured in the USA with the same durable materials as our Super Hinge™, it ensures:

Single-person operation for opening the exhaust fan
A stable foundation for fan opening
A safer working environment
A built-in service hold-open retainer to lock the hinge during servicing
A more secure seal and better airflow
Prolonged fan life by reinforcing the fan base

Spec Sheet Flyer Installation Information

Which Hinge Do I Need?

We're here to help you choose the right Omni hinge for your fan. To assist us in making the best recommendation, please select your fan type and provide its measurements. Additionally, we ask that you upload three pictures of your fan so we can identify any specific factors that need to be considered. Refer to the example pictures to access the Quick Print-n-Fit Kit.

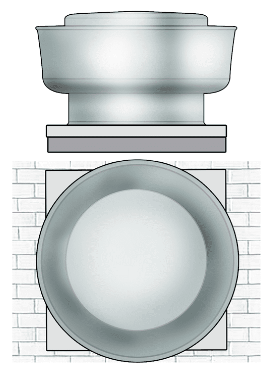

Typical Fan

Reduced Fan Base

Tapered Duct

Side Wall Fan

Mismatched Curb

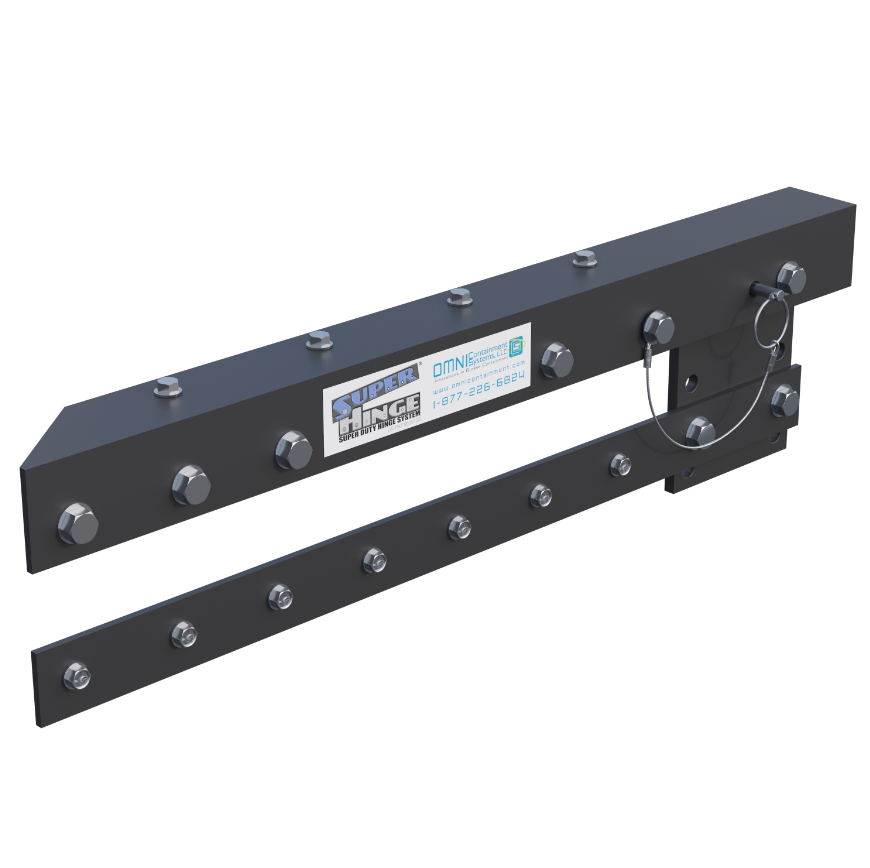

Super Hinge

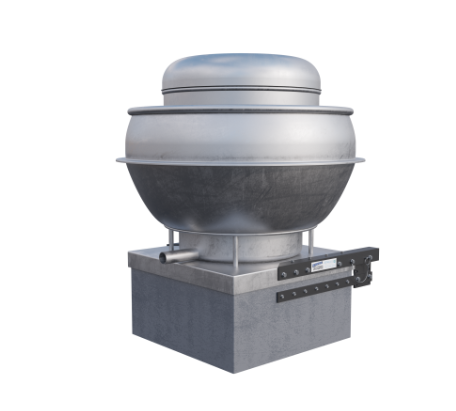

The patented Super Hinge™ is the only NFPA 96 compliant fan hinge on the market, providing access to rooftop up-blast exhaust fans. Hinged up-blast exhaust fans are necessary for commercial exhaust systems to meet NFPA 96 requirements, which include:

Hinged commercial up-blast exhaust fans
Service hold-open retainers

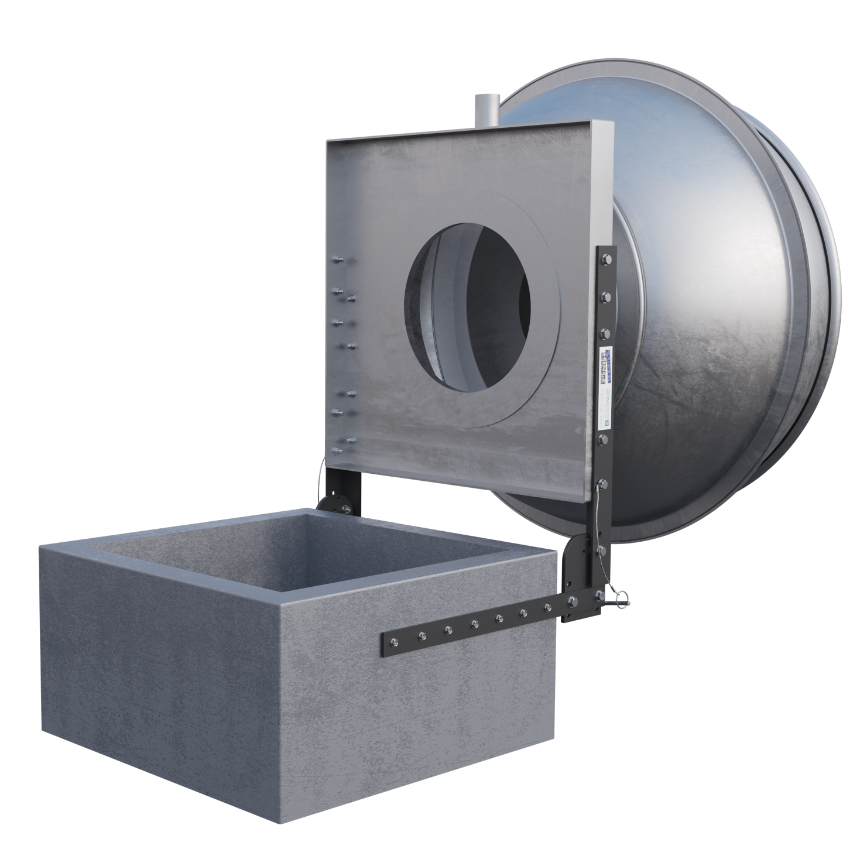

The standard Super Hinge™ includes an L-bracket on the top support arm to reinforce damaged up-blast fans or support heavy fan weight distribution. These features make the Super Hinge™ the most versatile hinge system offered by Omni Containment Systems, adaptable to fit all up-blast exhaust fans on the market.

Additionally, the Super Hinge™ includes the patented Service Hold Open Retention System, ensuring:

Single-person operation for opening the exhaust fan
A stable foundation for fan opening
A safer working environment
A built-in service hold-open retainer to lock the hinge during servicing
A more secure seal and better airflow
Prolonged fan life by reinforcing the fan base

Manufactured in the USA with durable materials, the Super Hinge™ guarantees reliability and longevity.

Spec Sheet Flyer Installation Information

Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button
Slide title

Write your caption here

Button

Button

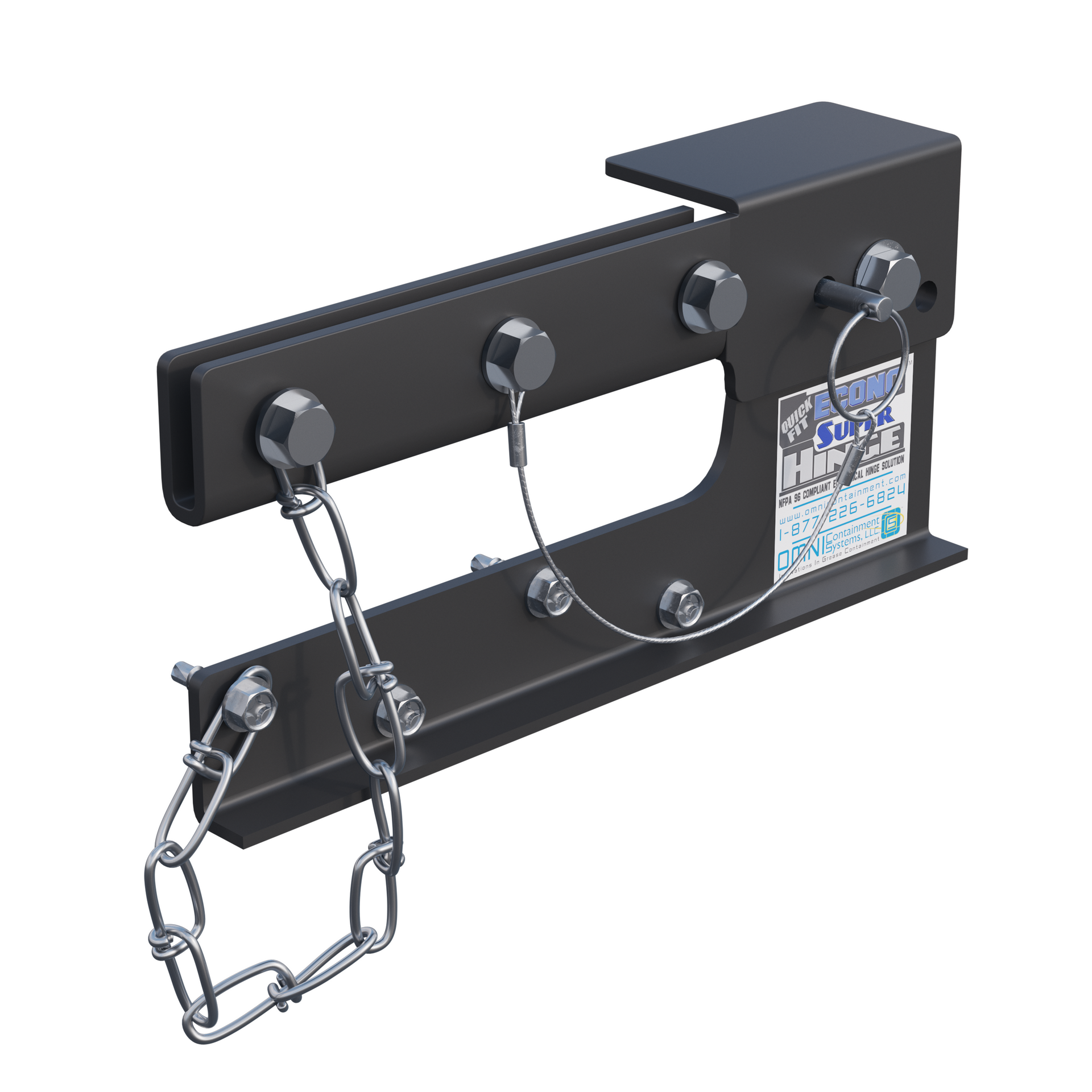

Econo Hinge

The Econo Hinge provides access to rooftop up-blast exhaust fans and is perfect for smaller fans weighing less than 25 pounds. It also features the Quick Fit mounting system, which allows users to install this version while the fan is still running. The Econo Hinge is manufactured in the USA.

Benefits

Single-Person Operation: Easily open up-blast exhaust fans without the need for additional help.
Stable Foundation: Provides a more secure and stable foundation for fan opening.
Enhanced Safety: Creates a safer working environment during maintenance and cleaning.
Built-in Service Hold-Open Retainer: Secures the hinge in a locked position during servicing for added safety.
Improved Airflow and Sealing: Ensures a more secure seal and better airflow management.
Prolong Fan Life: Reinforces the base of the fan, extending its lifespan by providing additional support.
